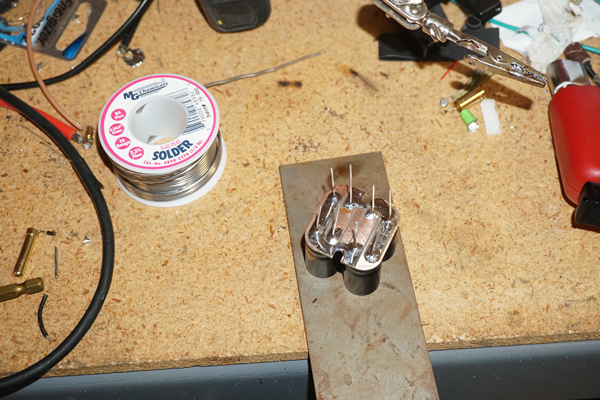

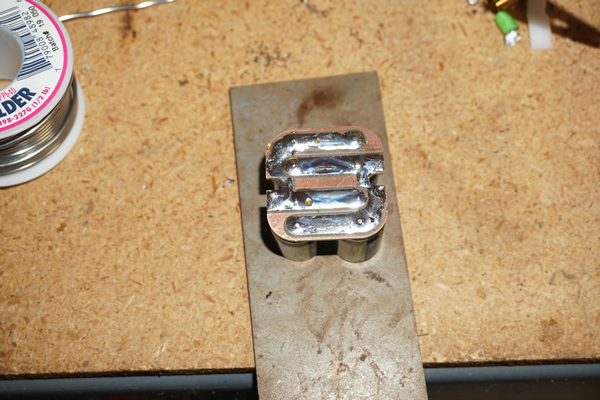

| CAP PACK ASSEMBLY |
|
| CAP PACK ASSEMBLY |
|
|

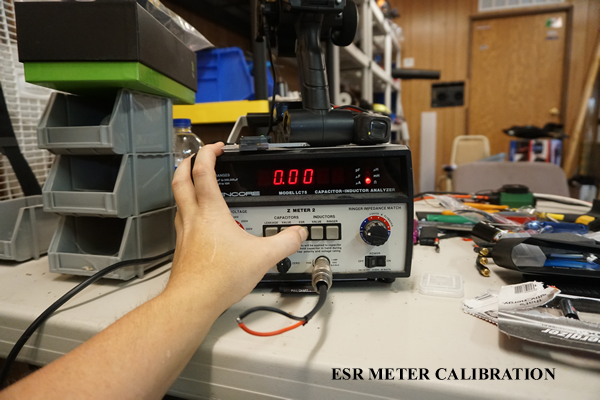

| Cap meter calibration for the most accurate measurement |
|
|

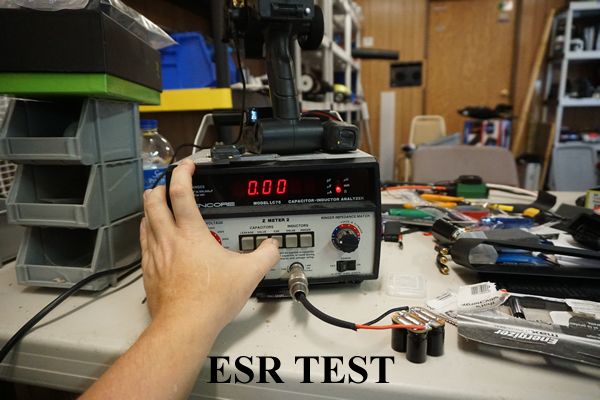

| Cap Pack ESR test 0.00 Ohms @ 400 hz is good that means the lowest ripple |
|
|

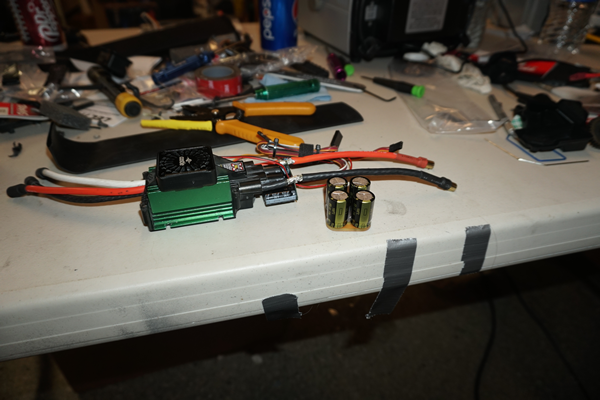

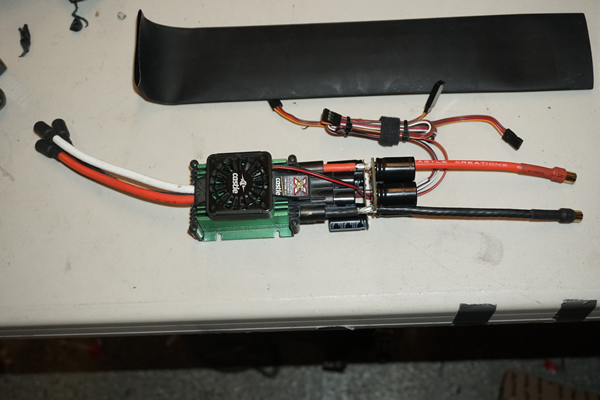

| Pack is soldered as close to the ESC as possible to reduce the esr of the wires |
|
| Pack is soldered as close to the ESC as possible to reduce the ESR from the cappack wires |
|
|

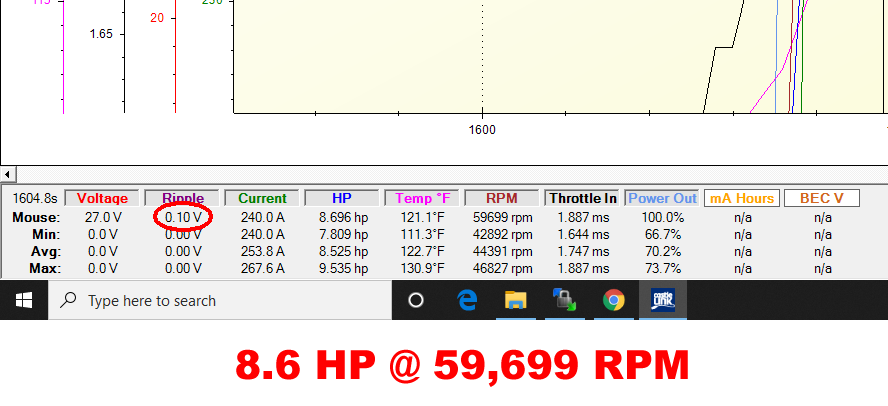

| Ripple on 8s is only 1 tenth of a volt Producing over 8 HP |
|

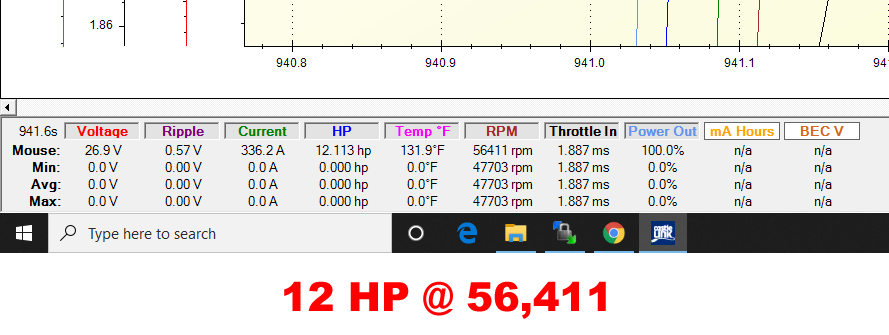

| At 12 HP Ripple is still Extremely Low |
